What's reflow soldering? Introduction into the principle and process of reflow soldering

04.03.2021

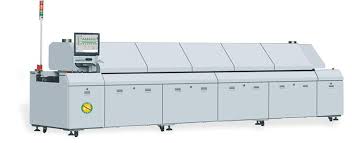

1. Precisely what is reflow soldering

Reflow soldering is in English. Reflow is always to remelt the solder paste pre-distributed over the printed board pads to appreciate the mechanical and electrical relationship among the solder ends or pins in the area mount parts as well as the printed board pads. Brazing. Reflow soldering would be to solder the elements into the PCB board, and reflow soldering should be to mount the components to the floor. Reflow soldering relies on the result of hot airflow over the solder joints. The colloidal flux bodily reacts below a particular superior temperature airflow to obtain SMD soldering; the reason why it is actually known as "reflow soldering" is since the gas circulates within the soldering equipment to deliver large temperature to obtain soldering. purpose.

The principle of reflow soldering is split into numerous descriptions:

(Reflow soldering temperature profile)

A. When the PCB enters the heating zone, the solvent and fuel while in the solder paste evaporate, and simultaneously, the flux from the solder paste wets the pads, component finishes and pins, plus the solder paste softens, collapses, and addresses the solder The pads isolate the pads and element pins from oxygen.

B. In the event the PCB enters the heat preservation place, make the PCB and elements completely preheated to stop the PCB from out of the blue entering the welding substantial temperature region and harmful the PCB and factors.

C. Once the PCB enters the soldering space, the temperature rises fast so that the solder paste reaches a molten state, as well as liquid solder wets, diffuses, diffuses, or reflows on the PCB pads, ingredient finishes and pins to form solder joints.

D. The PCB enters the cooling zone as well as the solder joints are solidified; when the reflow soldering is completed.

The operating principle of dual-track reflow soldering

The dual-rail reflow oven can double the potential of the one dual-rail oven by processing two circuit boards in parallel at the same time. Presently, circuit board makers are confined to dealing with circuit boards from the very same or equivalent fat in each monitor. Now, the dual-track dual-speed reflow oven with unbiased orbital speeds causes it to be a actuality to process two more distinct circuit boards simultaneously. 1st, we'd like to understand the leading elements that influence the warmth transfer with the reflow oven heater to your circuit board. Beneath typical circumstances, as shown from the figure, the lover of the reflow oven pushes fuel (air or nitrogen) throughout the heating coil. Right after the gasoline is heated, it truly is sent to your solution by means of a sequence of holes from the orifice.

The next equation can be employed to describe the procedure of warmth strength transfer in the airflow towards the circuit board, q = warmth vitality transferred to the circuit board; a = convective warmth transfer coefficient in the circuit board and factors; t = heating time on the circuit board; A = heat transfer area location ; |¡èT = the temperature difference between the convection fuel along with the circuit board. We shift the related parameters of the circuit board to 1 facet from the components, and shift the parameters in the reflow oven for the other facet, and also the next formulation is often acquired: q = a | t | A | | T

Dual-track reflow soldering PCB is fairly common, and it progressively became more and more well known. The primary reason for it for being so popular is always that it provides designers with really fantastic elastic house, in order to style and design much more compact, compact and low-cost merchandise. As of nowadays, dual-rail reflow soldering boards generally possess the higher side (element side) soldered by reflow, and after that the lessen side (guide aspect) is soldered by wave soldering. A existing craze is towards dual-track reflow soldering, but you can find nonetheless some problems with this process. The bottom part on the large board may tumble off for the duration of the 2nd reflow procedure, or component of the underside solder joint could soften, triggering trustworthiness problems within the solder joint.

2. Introduction to reflow soldering procedure

The reflow soldering method is usually a surface-mounted board, and its course of action is a lot more intricate, which could be divided into two forms: single-sided mounting and double-sided mounting.

A, single-sided mounting: pre-coated solder paste ?¨² patch (divided into guide placement and machine automated placement) ?¨² reflow soldering ?¨² inspection and electrical exam.

B, double-sided placement: A side pre-coated solder paste ?¨² patch (divided into handbook placement and machine automated placement) ?¨² reflow soldering ?¨² B facet pre-coated solder paste ?¨² placement (divided into handbook placement and machine computerized placement) Mounting) ?¨² reflow soldering ?¨² inspection and electrical test.

The simplest approach of reflow soldering is "screen printing solder paste-patch-reflow soldering. Its main is the precision in the monitor printing. For the patch, the generate fee is set with the machine's PPM. The reflow soldering is always to command the temperature increase and also the optimum Temperature and slipping temperature curve.

Reflow soldering system demands

Reflow soldering engineering is not unfamiliar inside the area of electronic production. The factors around the various boards employed in our computers are soldered to the circuit board via this method. The advantage of this method is the fact that the temperature is a snap to regulate, oxidation may be averted for the duration of the welding course of action, plus the producing expense is less complicated to manage. There is a heating circuit inside this gadget, which heats the nitrogen fuel to a large plenty of temperature and blows it to the circuit board where the element is previously hooked up, to ensure the solder on both equally sides of the component is melted after which bonded on the motherboard.

1. It truly is important to set an inexpensive reflow soldering temperature curve and conduct real-time screening with the temperature curve consistently.

two. The welding must be performed in accordance together with the welding direction of your PCB structure.

3. Strictly reduce the conveyor belt from vibration for the duration of the welding process.

four. The welding outcome of the first printed board have to be checked.

five. Whether the welding is adequate, if the area in the solder joint is clean, whether the solder joint shape is half-moon shape, the condition of tin balls and residue, the condition of continual soldering and virtual soldering. Also examine for adjustments inside the colour of your PCB floor, and so on. And regulate the temperature curve based on the inspection results. The welding excellent must be checked frequently in the course of the entire batch creation approach.

Aspects impacting the method:

1. Normally, PLCC and QFP have a larger heat capability than the usual discrete chip part. It really is more challenging to weld large-area factors than smaller elements.

two. Within the reflow oven, the conveyor belt is utilized to transfer merchandise for reflow, and simultaneously it becomes a warmth dissipation method. In addition, the warmth dissipation situations are distinctive among the edge and also the centre with the heating portion. The sting temperature is mostly reduced, except for the temperature of each and every temperature zone within the furnace. Furthermore towards the diverse prerequisites, the temperature of your identical load floor can also be distinctive.

3. The impression of different merchandise hundreds. The adjustment of the temperature curve of reflow soldering ought to take into account that excellent repeatability is usually attained underneath no-load, load and different load variables. The load aspect is outlined as: LF=L/(L+S); the place L=the size in the assembled substrate and S=the interval of the assembled substrate. For reflow soldering procedure to obtain reproducible final results, the greater the load issue, the more difficult it truly is. Normally, the utmost load issue of your reflow oven is in the range of 0.5 to 0.9. This relies within the product or service circumstance (element soldering density, diverse substrates) and distinctive designs of reflow furnaces. To receive excellent welding outcomes and repeatability, realistic expertise is incredibly essential.

Reflow soldering could be the core technologies with the SMT process. All of the digital factors to the PCB are soldered at one time by all round heating. The quality control of the SMT output line with the electronics factory accounts for an absolute component of the perform to obtain fantastic soldering quality. Soon after placing the temperature curve, the furnace is managed. This is something all PE is aware. Many files and components mention the setting of reflow soldering temperature curve. For a new products, new furnace, new solder paste, tips on how to immediately set the reflow soldering temperature curve? This demands us to have a basic knowing of your notion of temperature profile along with the principle of solder paste soldering.
